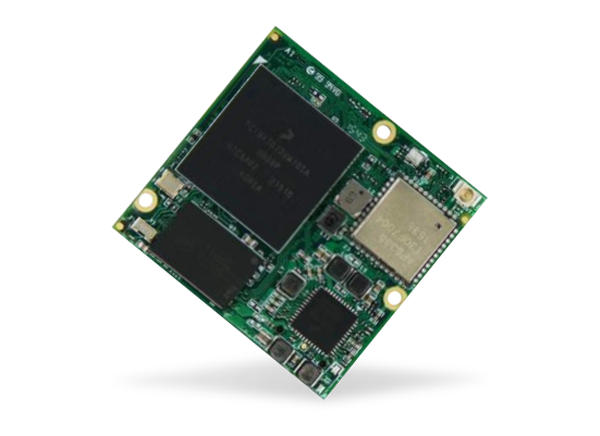

Wandboard PICO-IMX7 System-On-Module

Wandboard PICO-IMX7 System-On-Module (SoM) design is based on the NXP i.MX7 multi-market applications processor. This module is designed to enable secure and portable applications within the Internet of Things (IoT). The PICO-IMX7 SoM offers WiFi® and Bluetooth® communication interface. This PICO-IMX7 SoM is pin-compatible low-speed I/O to support multimedia and connectivity that can easily be expanded and implemented for IoT designs.

Features

  • Features NXP i.MX7 UL application processor
  • Pin-compatible with the Intel Edison for sensors and low-speed I/O
  • WiFi and Bluetooth communication interface
  • ARM Cortex-A7 + M4 architecture
  • Up to 2GB DDR3L memory
  • Board-to-Board compatible connector
  • I2S (2-channel) audio interface
  • Processors
    • NXP i.MX7 solo
    • NXP i.MX7 dual
  • Operating systems
    • Android Things
    • Linux
    • Yocto
    • Ubuntu
  • Compliant with CE, FCC, RoHS, and REACH directives

Specifications

  • 4.2VDC to 5.25VDC power input
  • 0°C to +60°C commercial temperature
  • 20G/0-600Hz vibration
  • 10% to 90% relative humidity
  • 37mm x 40mm dimensions

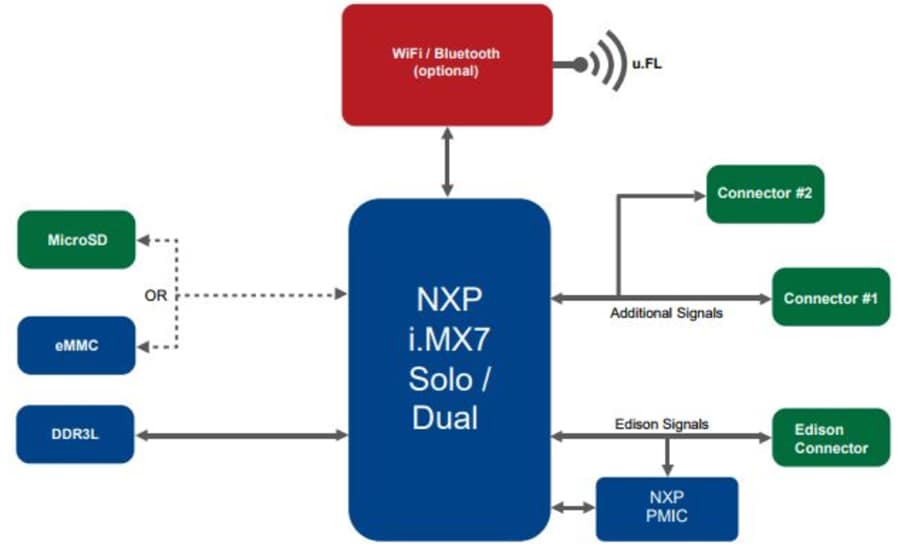

Block Diagram

Block Diagram - Wandboard PICO-IMX7 System-On-Module
