Terasic Technologies DE1-SoC Development Kit

Terasic DE1-SoC Development Kit presents a robust hardware design platform built around the Altera System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous reconfigurability paired with a high-performance, low-power processor system.

Altera's SoC integrates an ARM-based hard-processor system (HPS) consisting of processor, peripherals, and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE1-SoC development board includes hardware, such as high-speed DDR3 memory, video and audio capabilities, Ethernet networking, and much more. The Terasic DE1-So C Development Kit contains all components needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.

Features

  • FPGA
    • Cyclone V SoC 5CSEMA5F31C6 device
    • Dual-core ARM Cortex-A9 (HPS)
    • 85K programmable logic elements
    • 4450Kbits embedded memory
    • 6 fractional PLLs
    • 2 hard memory controllers
  • Configuration and debug
    • Quad serial configuration device - EPCQ256 on FPGA
    • Onboard USB Blaster II (normal type B USB connector)
  • Memory Device
    • 64MB (32Mx16) SDRAM on FPGA
    • 1GB (2x256Mx16) DDR3 SDRAM on HPS
    • MicroSD card socket on HPS
  • Communication
    • 2 Port USB 2.0 Host (ULPI interface with USB type A connector)
    • USB to UART (micro USB type B connector)
    • 10/100/1000 Ethernet
    • PS/2 mouse/keyboard
    • IR emitter/receiver
  • Connectors
    • Two 40-pin expansion headers
    • One 10-pin ADC input header
    • One LTC connector (one Serial Peripheral Interface (SPI) Master, one I2C, and one GPIO interface)
  • Display
    • 24-bit VGA DAC
  • Audio
    • 24-bit CODEC, line-in, and microphone-in jacks
  • Video-input
    • TV decoder (NTSC/PAL/SECAM) and TV-in connector
  • Switches, buttons, and indicators
    • 4 user keys (FPGA x4)
    • 10 user switches (FPGA x10)
    • 11 user LEDs (FPGA x10; HPS x 1)
    • 2 HPS reset buttons (HPS_RST_n and HPS_WARM_RST_n)
    • Six 7-segment displays
  • Sensors
    • G-Sensor on HPS
  • Power
    • 12V DC input

Kit Contents

  • The DE1-SoC development board
  • DE1-SoC quick start guide
  • USB Cable (type A to B) for FPGA programming and control
  • USB Cable (Type A to Mini-B) for UART control
  • DE1-SoC System CD-ROM: Documentation and supporting materials, user manual, system builder, reference designs, and datasheets.
  • 12V DC power adapter

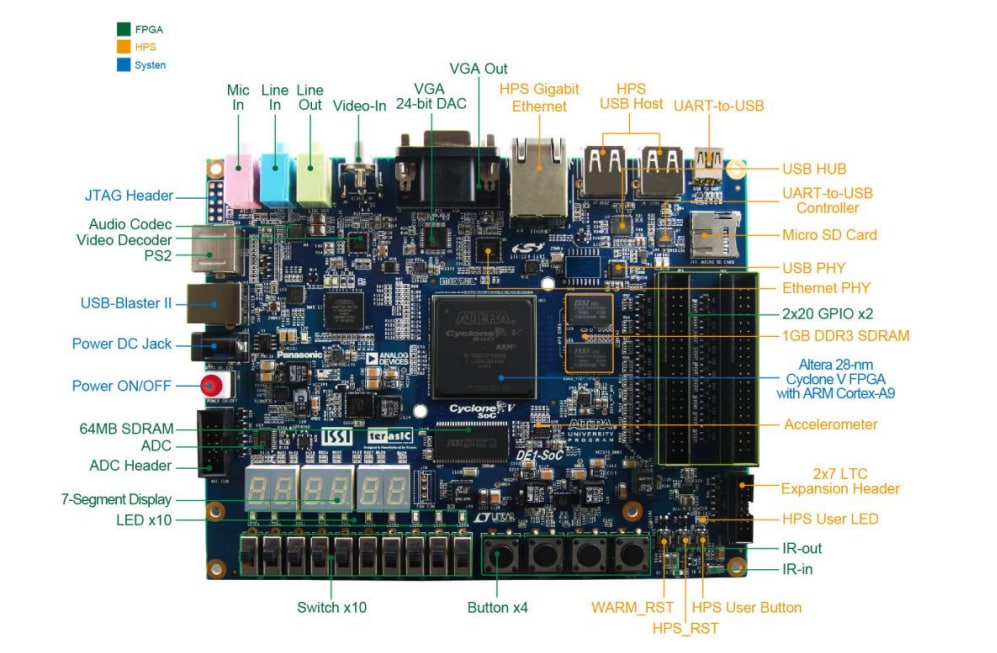

Board Layout

Location Circuit - Terasic Technologies DE1-SoC Development Kit

Videos

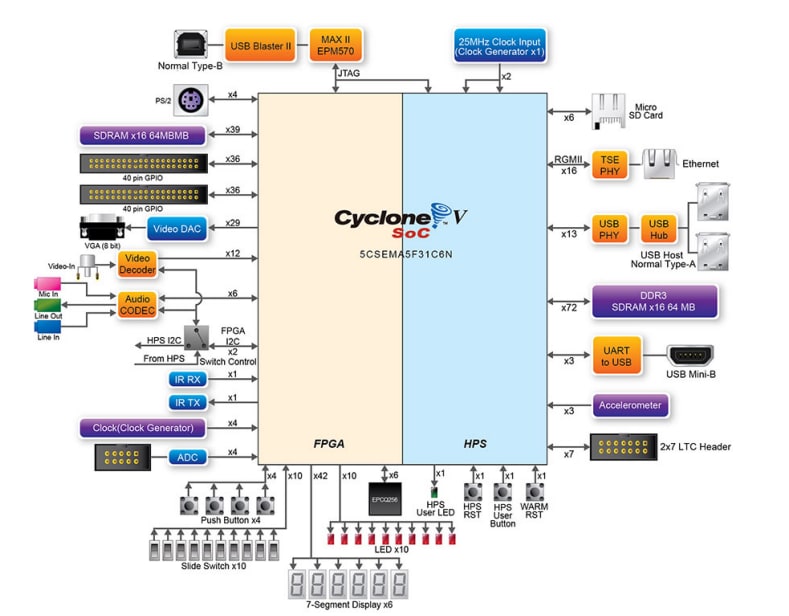

Block Diagram

Block Diagram - Terasic Technologies DE1-SoC Development Kit
