SECO SBC-C90 Single Board Computers

SECO SBC-C90 Single Board Computers are 3.5” SBCs with AMD Ryzen™ Embedded R1000/V1000 family of System-on-Chips (SOCs). These SBCs feature a maximum of four cores, up to 4096 x 2160 video resolution, and four DP++ connectors as video interfaces. The SBC-C90 offers up to two Gigabit Ethernet ports, multiple USB and PCI-e ports, and two RS-232/RS-422/RS-485 UARTs serial ports. These SBCs support two DDR4 SO-DIMM slots for memory and Microsoft® Windows 10 (64-bit) and Linux Ubuntu operating systems. The SBC-C90 is available in 146mm x 102mm dimensions. Typical applications include digital signage - infotainment, edge computing, gaming, Human Machine Interface (HMI), and industrial automation, and control.

Accessories

The SBC-C90 Single Board Computers comes with two accessories including a heat sink and a cable kit. The SBC-C90 heat sink effectively dissipates the excess heat away from the device. The SBC-C90 cable kit contains the necessary cables that help in connecting the single-board computers.

Features

  • CPU:
    • AMD Ryzen™ Embedded V1000 and R1000 processors
  • Connectivity:
    • 2x GbE
    • M.2 WWAN and WLAN slots
    • 2x USB 3.0
    • 2x USB 2.0
    • 8x GPIOs
  • Graphics:
    • AMD Radeon™ Vega GPU with up to 11 compute units
  • Memory:
    • 2x DDR4 SO-DIMM slots supporting DDR4-3200/2400 ECC and non-ECC memory
  • Video interfaces:
    • 4x DP++ connectors (only 3 working with R1000 SoCs)
  • Video resolution:
    • DP++ up to 4096 x 2160
  • Serial ports:
    • 2x RS-232/RS-422/RS-485 UARTS on internal pin header
  • Operating systems:
    • Microsoft Windows 10 (64-bit)
    • Linux Ubuntu
  • Operating temperature range:
    • 0°C to 60°C (commercial version)
    • -40°C to 85°C (industrial version)
  • 146mm x 102mm dimensions

Applications

  • Digital signage - infotainment
  • Edge computing
  • Gaming
  • HMI
  • Industrial automation and control

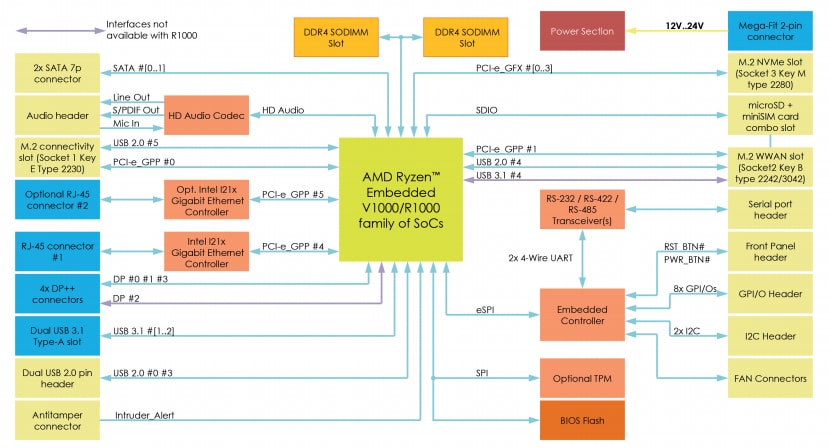

Block Diagram

Block Diagram - SECO SBC-C90 Single Board Computers

Associated Products

iBASE Technology ET976 AMD Ryzen™ Embedded V1000 CPU Module

AMD Ryzen™ Embedded V1000 CPU Module designed for graphics-intensive devices.

Learn Moreüber iBASE Technology ET976 AMD Ryzen™ Embedded V1000 CPU Module View Productsverwandt mit iBASE Technology ET976 AMD Ryzen™ Embedded V1000 CPU Module
View Results ( 4 ) Page
Teilnummer Beschreibung Formfaktor Frequenz Betriebsversorgungsspannung Leistungsaufnahme Abmessungen
SC90-DISS-3-PK Wärmeableitungen SBC-C90 Heat Sink (ACTIVE) - Packaged
SC90-4000-1312-C1-V Einzelkartencomputer SBC-C90 w/ AMD Ryzen Embedded V1807B a. 3.35GHz 45W, Horizontal power conn, TPM 2.0, 2x GbE (I210), 3-wire fan - Comm. Temp 3.5 in 3.35 GHz 12 V to 24 V 45 W 146 mm x 102 mm
KTCB-C90-001.00 Modulezubehör Cable kit SBC-C90
SC90-2000-1312-C1-V Einzelkartencomputer SBC-C90 w/ AMD Ryzen Embedded V1605B a. 2.0GHz 15W, Horizontal power conn, TPM 2.0, 2x GbE (I210), 3-wire fan - Comm. Temp 3.5 in 2 GHz 12 V to 24 V 15 W 146 mm x 102 mm
