OTTO JHT Miniature Hall Effect Joysticks

OTTO JHT Miniature Hall Effect Joysticks feature a compact design and robust construction for applications requiring precision control in a limited amount of space. The series is available with optional pushbutton switches. With an IP68S rating and 5 million operational cycles in all directions, the JHT series is ideal for robotics, construction equipment, medical equipment, and security video cameras. Typical applications include robotics, hydraulic controls, medical, and surgery equipment.

Features

  • Compact design excellent for armrest and panel mounting
  • Proven contactless analog output Hall Effect technology
  • 5 million operational cycles in all directions
  • Sealed per IP68S
  • Single/omnidirectional and preferred feel options
  • Optional pushbutton switch(es) available
  • RoHS/WEEE/Reach compliant

Applications

  • Robotics
  • Construction equipment
  • Hydraulic controls
  • Medical and surgery equipment
  • Security and surveillance video cameras

Specifications

  • 1-axis type
  • 4.5VDC to 5.5VDC supply voltage range
  • 12mA maximum current rating
  • -40°C to +85°C operating temperature range
  • Mechanical life
    • 5,000,000 cycles in all direction for the joystick
    • 1,000,000 cycles for the P9
  • Black thermoplastic housing

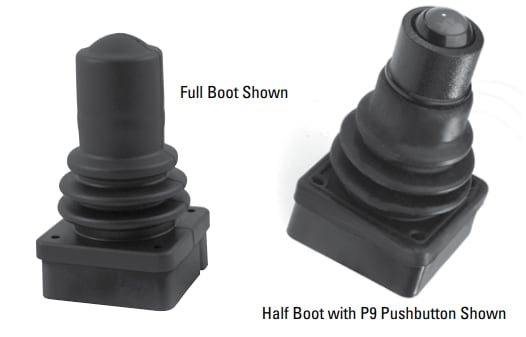

Miniature hall effect joystick

Application Circuit Diagram - OTTO JHT Miniature Hall Effect Joysticks
View Results ( 25 ) Page
Teilnummer Datenblatt Beschreibung Kenndaten und Eigenschaften
JHT-1131BB1N JHT-1131BB1N Datenblatt Joysticks FullBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-2111AA1N JHT-2111AA1N Datenblatt Joysticks FullBoot W/O P-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-1111AA1N JHT-1111AA1N Datenblatt Joysticks FullBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-1131AA1N JHT-1131AA1N Datenblatt Joysticks FullBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-1131CC1N JHT-1131CC1N Datenblatt Joysticks Minature Joystick Compact Design
JHT-1141AA1N JHT-1141AA1N Datenblatt Joysticks FullBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-1141BB1N JHT-1141BB1N Datenblatt Joysticks FullBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-1231AA12 JHT-1231AA12 Datenblatt Joysticks HalfBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-1231BB11 JHT-1231BB11 Datenblatt Joysticks HalfBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
JHT-1231CC12 JHT-1231CC12 Datenblatt Joysticks HalfBoot W/Push-Bttn 2.5 +/- 2.0VDC Compact Design
