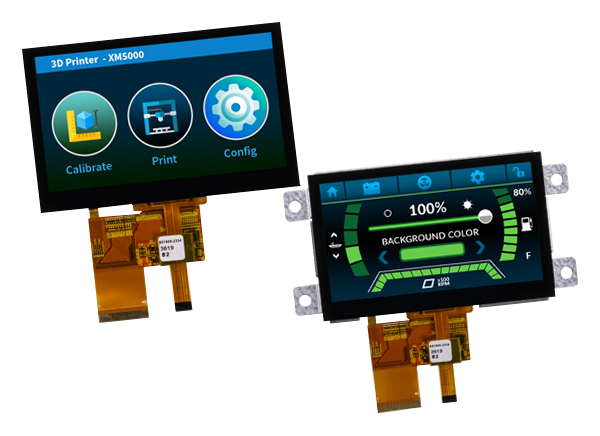

Newhaven Display 4.3" IPS TFT Display Modules

Newhaven Display 4.3" IPS TFT Display Modules are offered in three variations: Benchmark IPS Module, IPS HDMI Module, and IPS EVE2 Module. These IPS Display Modules are available with a Capacitive Touch Panel or without Touch. They are also offered with and without a steel mounting bracket with standoffs. The Newhaven Display 4.3" IPS TFT Display Modules ensure high contrast, wide viewing angles, fast response times, wide operating temperatures, and overall enhanced user interaction.

• Benchmark IPS Modules
  The Newhaven Display Benchmark IPS Modules feature IPS technology, wide viewing angles, and a standard 24-bit RGB interface.


• IPS HDMI Modules
  HDMI Modules include support for any controller with an HDMI output, plus an onboard DC power port and Texas Instruments™ ICs for added functionality. The Newhaven Display 4.3" IPS HDMI TFT Modules deliver full 24-bit true color with 800x480 resolution. These modules come equipped with both a TI TFP401A HDMI/DVI receiver and a TI TPS61165 LED driver. These devices include four 3.5mm mounting holes compatible with any standard M3 screws.


• IPS EVE2 Modules
  EVE2 supports a feature-rich controller capable of managing graphics, audio, and touch. Portrait and landscape modes are supported, as well as multiple image formats and video playback. Built-in widgets include everything from touchscreen buttons and sliders to gauges and clocks, making for a completely interactive interface right out of the box. No extra casing is required to mount the display, the built-in mounting brackets are compatible with any standard M3 screws.
