Mini-Circuits ZFSC 50Ω Coaxial Power Splitters/Combiners

Mini-Circuits ZFSC 50Ω Coaxial Power Splitters/Combiners provide wideband performance across multiple frequency bands with low insertion losses (0.25dB to 1.9dB typical). The ZFSC components are packaged in either a J17, K18, or R30 case style with a rugged shielded case. Connector options include BNC, N-Type, and SMA. The Mini-Circuits ZFSC 50Ω Coaxial Power Splitters/Combiners feature a -55°C to +100°C temperature range and are ideal for various communication systems, cellular, GPS, and instrumentation applications.

Features

  • Wideband 0.1MHz to 3700MHz performance
  • 50Ω impedance
  • 0.25W or 1W maximum power input (as a splitter)
  • 2 Way-0°, 3 Way-0°, or 16 Way-0° options
  • 0.125W to 0.87W maximum internal dissipation range
  • 0.25dB to 1.9dB typical insertion loss range
  • Temperature range as low as -55°C up to +100°C
  • Rugged shielded K18, J17, or R30 case styles
  • BNC, N-Type, and SMA connector options
  • RoHS compliant

Applications

  • HF/VHF/UHF
  • Instrumentation
  • Communication systems
  • Cellular
  • Satellite distribution
  • GPS
  • PCS/DCS
  • ISM
  • MMDS
  • Signal processing

Schematics

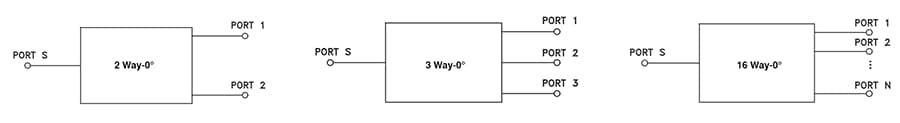

Schematic - Mini-Circuits ZFSC 50Ω Coaxial Power Splitters/Combiners
Veröffentlichungsdatum: 2021-01-28 | Aktualisiert: 2025-06-16
