Melexis MLX81113 Single-Chip LIN RGB Controllers

Melexis MLX81113 Single-Chip LIN RGB Controllers are fully integrated low-end LIN slave designed for automotive ambient lighting. These controllers are suitable for bus systems according to LIN 2.x as well as SAE J2602. The MLX81113 controllers feature a combination of physical layer LIN transceiver and LIN protocol controller along with current-controlled outputs. This combination makes it possible to develop simple but powerful and cost-efficient ambient light modules connected to LIN bus systems in a short timeframe. These controllers offer internal RC oscillator, watchdog timers with independent clocks, math co-processors for 32-bit MUL/DIV operations, and diagnostic capability for connected LED.

The MLX81113 controllers also feature an integrated temperature sensor, a 10-bit ADC with DMA, 25µA low standby current consumption, and an integrated battery monitor. These LIN RGB controllers are AECQ-100 qualified and operate within -40°C to 125°C automotive temperature range.

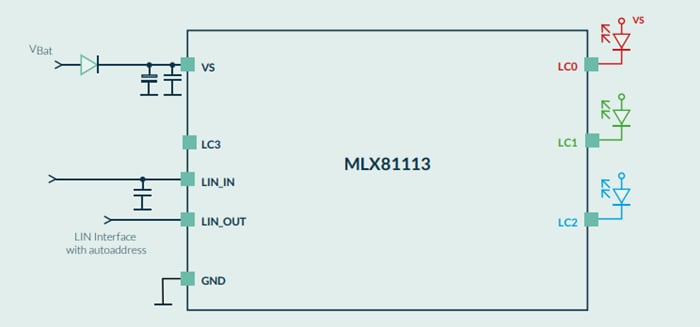

Features

16-bit pipelined RISC microcontroller with:
- 32KB Flash
- System ROM with bootloader and LIN driver
- 2KB RAM
- 576 byte EEPROM
Math co-processor for 32-bit MUL/DIV operations
Watchdog timers with independent clocks
Internal RC oscillator
LIN protocol controller according to LIN 2.x and SAE J2602:
- Baudrate up to 19.2 kBaud
- Frame processing
- Low interrupt load to the application
LIN transceiver according to LIN 2.x and SAE J2602
Diagnostic capability for connected LED
10-bit ADC with DMA:
- Multiple channels (outputs, VS, temperature sensor, and IOs)
- Different reference voltages
- Differential as well as single-ended measurement capability
- DMA access
