Altera / Intel USB-Blaster™ Downloadkabel

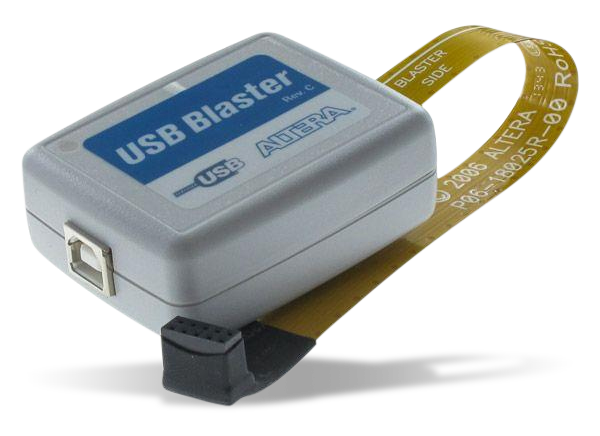

Alteras USB-Blaster™ Downloadkabel verbindet einen USB-Port an einem Host-Computer mit einem Altera® FPGA, der auf einer Leiterplatte montiert ist. Das Kabel schickt Konfigurationsdaten vom PC zu einem Standard-Header mit 10-Pins, der mit dem FPGA verbunden ist. Sie können das USB-Blaster-Kabel nutzen, um iterativ Konfigurationsdaten in ein System herunterzuladen während des Prototypings oder Daten in das System zu programmieren während der Produktion.

Merkmale

Drives configuration or programming data from the PC to configure or program Intel FPGA devices
RoHS and USB Full-Speed compliant
Supports standard Full-Speed USB PC ports
Supported Devices
- Stratix® series FPGAs
- Cyclone® series FPGAs
- MAX® series CPLDs
- Arria® GX series FPGAs
- APEX™ series FPGAs
- ACEX® 1K FPGAs
- Mercury™ FPGAs
- FLEX 10K® series FPGAs
- Excalibur™ FPGAs

Allows in-system programming of the following devices:

Altera configuration devices including EPC2 devices
Enhanced configuration devices including EPC4, EPC8, and EPC16 devices
Serial configuration devices including EPCS1, EPCS4, EPCS16, EPCS64, and EPCS128 devices
In addition, you can perform SignalTap® II logic analysis
The USB-Blaster download cable supports target systems using 5.0V TTL, 3.3V LVTTL/LVCMOS, and single-ended I/O standards from 1.5V to 3.3V

Power Requirements

The USB-Blaster download cable requires the following power sources:

5.0V from the USB cable
Between 1.5V and 5.0 V from the target circuit board

Software Requirements

The USB-Blaster download cable is only available for Windows 2000, Windows XP (32-bit and 64-bit), Windows Vista (32-bit and 64-bit), UNIX, and all Linux platforms such as Red Hat Enterprise 4, Red Hat Enterprise 5, CentOS 4/5, and SUSE Linux Enterprise 9.
