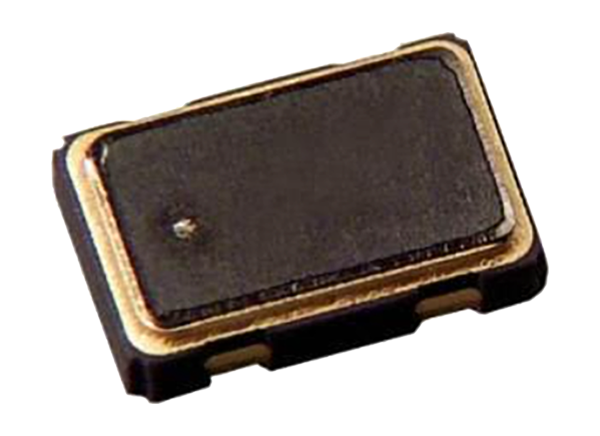

ECS CSM-8A SMD Crystals

ECS CSM-8A SMD Crystals feature a 6MHz to 6000MHz frequency range, up to 100Ω ESR rating, and a low-profile design. These crystals come in a glass-sealed ceramic package and offer tight stability and high reliability. ECS CSM-8A SMD Crystals have a -10°C to +70°C operating temperature range. The series is ideal for PCMCIA, Ethernet, and fax modem card applications.


  • Low-profile design
  • Glass-sealed ceramic packaging
  • Tight stability
  • High reliability


  • Ethernet
  • Fax modem cards


  • 6MHz to 100MHz frequency range
  • 60Ω to 100Ω ESR rating
  • ±30ppm frequency tolerance
  • 5pF shunt capacitance
  • 500µW drive level
  • -10°C to +70°C operating temperature range
  • RoHS compliant, 7(c)-I exemption

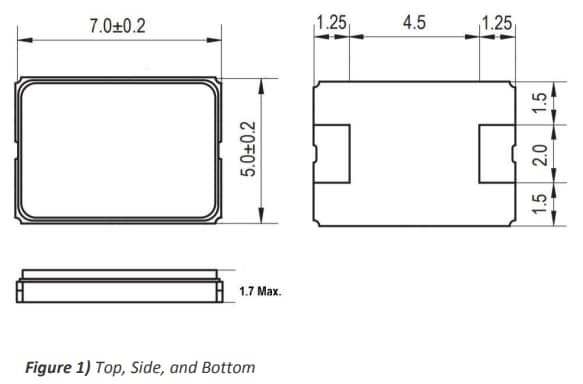

Dimensions (MM)

ECS CSM-8A SMD Crystals
Veröffentlichungsdatum: 2021-11-17 | Aktualisiert: 2022-03-11
