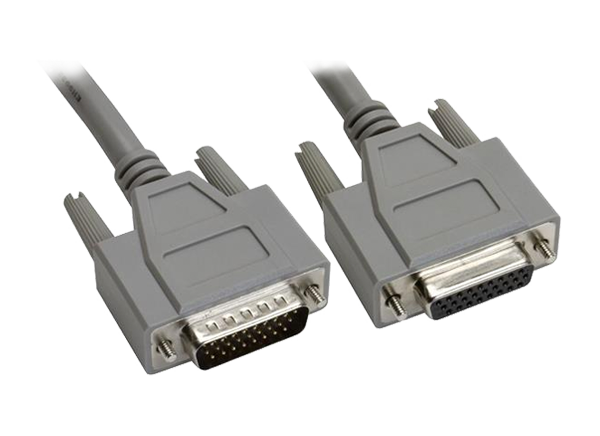

Amphenol Cables on Demand CS-DSD Deluxe D-Subminiature Cable Assemblies

Amphenol Cables on Demand CS-DSD Deluxe D-Subminiature Cable Assemblies are available in standard and high-density versions featuring a straight-thru pin-to-pin (1-to-1) wire arrangement. These cable assemblies are optimized for RS-232 serial I/O data transfer at distances up to 50 feet with a 300V handling capacity up to +80°C. The CS-DSD assemblies are constructed with a rugged UL 94V-0 flame-resistant PVC jacket, overmolded strain relief, and gold-plated contacts that provide superior signal quality.


  • Straight-thru pin-to-pin (1-to-1) wire arrangement
  • Connector styles
    • Standard-density (DB9, DB15, DB25, DB37, and DB50)
    • High-density (HD15, HD26, HD44, HD62, and HD78)
  • Optimized for RS-232 serial I/O data transfer up to 50 feet
  • Gold-plated contacts offer superior signal continuity
  • Rugged UL 94V-0 flame-resistant PVC jacket and overmolded strain relief
  • Soldered drain wire
  • 300V voltage handling capacity up to +80°C
  • Concentric shielding
    • Single-layer of aluminum foil for standard-density types
    • Enhanced overlapping copper tape for high-density types
  • Dual-shielding (foil + braid) plus metal can connectors
  • 2.5A maximum power distribution per pin
  • 4x thumbscrews reduce maintenance and inspection times
  • RoHS compliant


  • PC serial/parallel I/O applications
  • RS-232 serial data communications
  • Test/instrumentation I/O
  • Radio telemetry logging
  • Factory/industrial automation
  • CNC machine control
  • Prototype/breadboard I/O


  • 360° copper shielding
  • 9 to 78 pins
  • 2.5ft to 50ft cable lengths
  • ø0.256" to ø0.453 cables
  • Gray cable color
