American Bright LED AB-FAZ/AB-FZC 12" Bendable Light Strips

American Bright LED AB-FAZ and AB-FZC 12" Bendable Light Strips are versatile and customizable lighting solutions designed for both indoor and outdoor applications. These American Bright LED flexible strips are available in a range of colors, including white (with color temperatures from 2700K to 6500K), red, blue, green, RGB, and RGB+IC, allowing for dynamic and tailored lighting effects. Operating on 12VDC or 24VDC, the AB-FAZ and AB-FZC light strips offer IP20 or IP65 IP ratings, suitable for environments ranging from dry interiors to wet or submerged conditions. With a maximum length of up to 10 meters (depending on voltage), these strips are ideal for architectural accents, signage, or ambient lighting, and come with a 3-year warranty for added reliability.

Features

  • 12VDC or 24VDC options
  • Bendable light strips for diverse needs
  • IP20 and IP65 options, can be connected in serial
  • Wide 120° viewing angle
  • Top and side emitting options
  • No hot spots at the corners
  • 12V working voltage
  • 3.6W/M to 6.5W/M rated power range
  • Easy application for tight corners in designs
  • White (2700K to 6500K), single color red, green, blue, RGB, and RGB+IC
  • FPCBA surface coating
  • 3M 9495 double-sided tape on the back
  • 22AWG and 20AWG options
  • LEDs with built-in drivers (various models)
    • Control circuit and RGB chip in SMD 5050 packages
    • Single-wire interface for line data transmission
    • Grayscale (GS) control with PWM, 8-bit per channel (256x brightness steps)
    • Up to 800kbps maximum data transfer rate, when the refresh rate is 30fps, a cascade of not less than 1024
  • -40°C to +85°C operating temperature range
  • -40°C to +45°C environment temperature range
  • 40% to 70% environmental relative humidity (RH)
  • UL listed
  • 3-year warranty

Applications

  • Conference/meeting rooms
  • Hospitals
  • Commercial/residential buildings
  • ReEntertaining lighting
  • Hotels

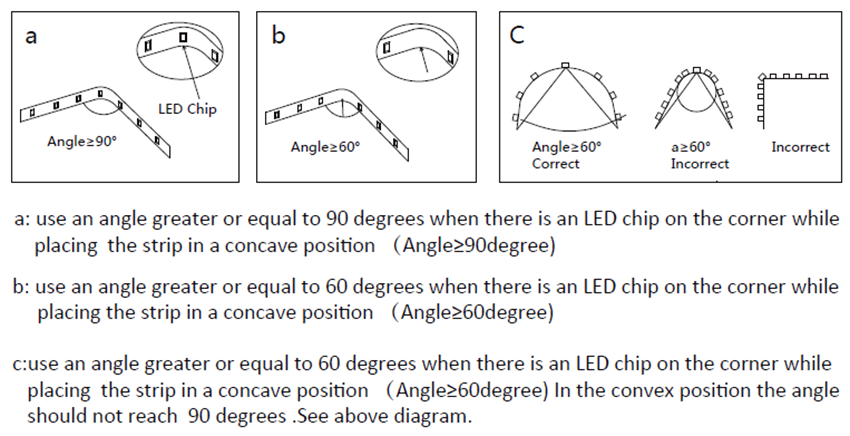

Installation

Chart - American Bright LED AB-FAZ/AB-FZC 12

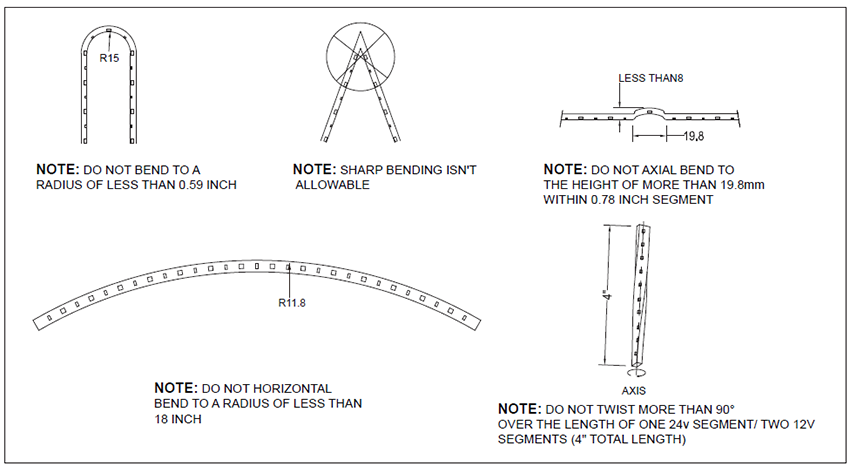

Maximum Flexibility Precaution

Mechanical Drawing - American Bright LED AB-FAZ/AB-FZC 12
