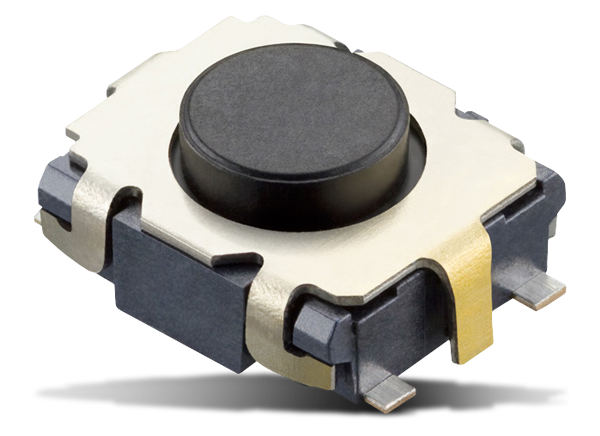

Alps Alpine SKSG TACT Switches

Alps Alpine SKSG TACT Switches™ feature a compact size of 3mm x 2.7mm and a high operating force up to 4N. These surface-mount switches are designed with a 1.4mm tall stem and grounding, making them ideal for in-car needs. Alps Alpine SKSG TACT Switches offer a vertical operating direction, an operating life of 200,000 cycles, and initial contact resistance of 100mΩ max. This series is used in automobiles, personal audio devices, FPTV technology, and DVD players.


  • Surface mount
  • Compact 3mm x 2.7mm size
  • 1.4mm tall stem
  • Vertical operating direction
  • High operating force up to 4N


  • HVAC
  • Automobiles
  • Personal audio devices
  • FPTV technology
  • DVD players


  • 50mA 12VDC max. rating
  • 100mΩ max. initial contact resistance
  • 0.12mm travel
  • 200,000 life cycles
