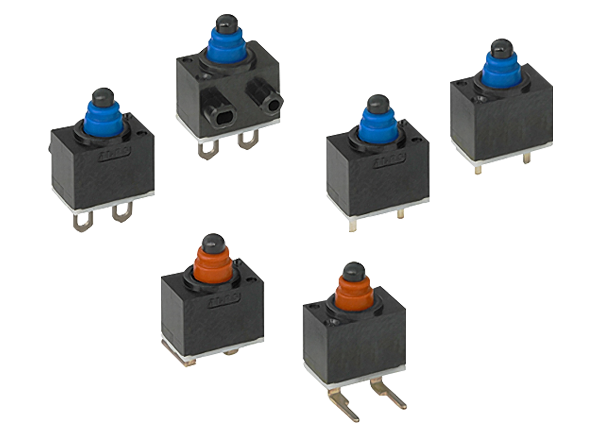

Alps Alpine SPVQ8 Waterproof Detector Switches

Alps Alpine SPVQ8 Detector Switches are waterproof switches designed for automotive use and provide up to 1 million cycles operating life. The SPVQ8 Waterproof Detector Switches offer two-way operation and a 0.1A, 12VDC maximum rating. SPV8Q also features 500mΩ maximum initial contact resistance and operates over a -40°C to +85°C temperature range.


  • Waterproof
  • 0.1A, 12VDC maximum / 50μA, 5VDC minimum rating
  • Contact resistance (initial / after operating life)
    • 500mΩ max / 1Ω max (standard type)
    • 500mΩ max / 3Ω max (long-life type)
  • Operating life
    • 300,000 cycles (standard type)
    • 1 million cycles (long-life type)
  • 1±0.5N operating force
  • Two-way operation
  • -40°C to +85°C operating temperature range
  • Designed for automotive use

Circuit Diagram

Application Circuit Diagram - Alps Alpine SPVQ8 Waterproof Detector Switches
