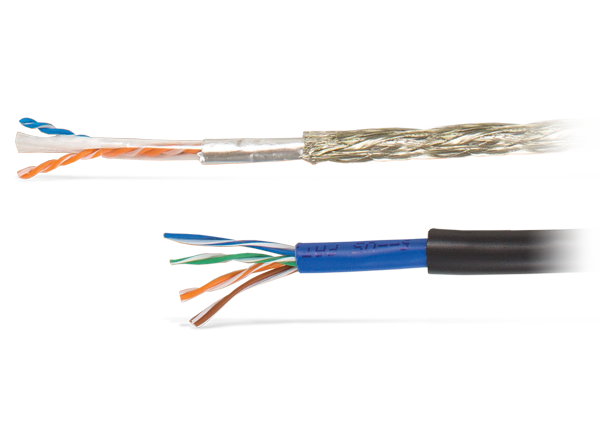

Alpha Wire Industrial Ethernet Alpha Essential Cables

Alpha Wire Industrial Ethernet Alpha Essentials cables include CAT 5e, CAT 6, and CAT 7, to better serve component integration and bandwidth needs. All products are fully compatible with RJ45 connectors. The ethernet cables are available in conductor sizes from 26AWG to 22AWG with temperature ranges between -40°C to +90°C. The collection includes cables of varying flexibility (continuous, torsional, and moderate flex) and approvals. Alpha Wire’s Industrial Ethernet is a perfect solution for applications in the robotics, medical, automation, and transportation industries.


  • RoHS 2 and REACH compliant
  • CE and RoHS Certified
  • Foil/braid and tinned copper braid shielding
  • Resistance in harsh environments (oil, gas, dust, and mold)
  • Stranded and solid conductor options
  • Continuous, moderate, and torsional flex
  • 500ft standard put up length
  • Low smoke, zero halogen, and flat cable constructions


  • Robotics
  • Medical
  • Automation
  • Transportation


  • -40°C to +90°C operating temperature range
  • ZH-PUR, PVC, and TPE jacket materials
  • Tinned copper, bare copper, and copper alloy conductor materials
  • Green and black colors
  • 500ft (152m) availability
