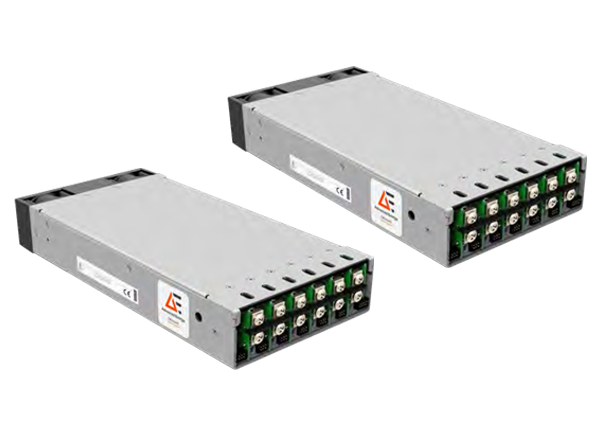

Advanced Energy CoolX 600 & CoolX 1800 Power Supplies
Advanced Energy Excelsys CoolX 600 and CoolX 1800 Power Supplies offer 4 to 6 slots and either 600W or 1800W of power, depending on the model. The CoolX600 series delivers 600W without fan-assisted cooling from a compact package. This power supply features no acoustic noise or vibrations and is field configurable for plug-and-play power.
The CoolX1800 series delivers 1800W in a compact 1U high package with PMBus™ digital communications, control, and reliability. Up to twelve outputs are available in the CoolX1800 module. Advanced Energy Excelsys CoolX600 and CoolX1800 Power Supplies are ideal for medical, industrial, audio, and Hi-Rel applications.
Features
- CoolX1800
- Up to 12 outputs
- Up to 1800W
- Variable fan speed control
- MTBF>200,000 hours
- 93% efficiency
- 23.5W always ON auxiliary power output
- All outputs isolated (1850VAC)
- Level 4 input surge protection
- Series and parallel outputs for higher voltages and currents
- CoolX600
- No base plate needed
- No acoustic noise or vibrations
- MTBF>400,000 hours
- >94% efficiency
- Safety approved to 5000m altitude
- Field-configurable - plug-and-play power
- 4 slots available
- 600W with 100% natural convection cooling
- Compact package
Applications
- Industrial
- Test and measurement
- Industrial machines
- Automation equipment
- Printing
- Telecommunications
- Audio equipment
- Medical
- Clinical diagnostic equipment
- Medical lasers
- Dialysis equipment
- Radiological imaging
- Clinical chemistry
