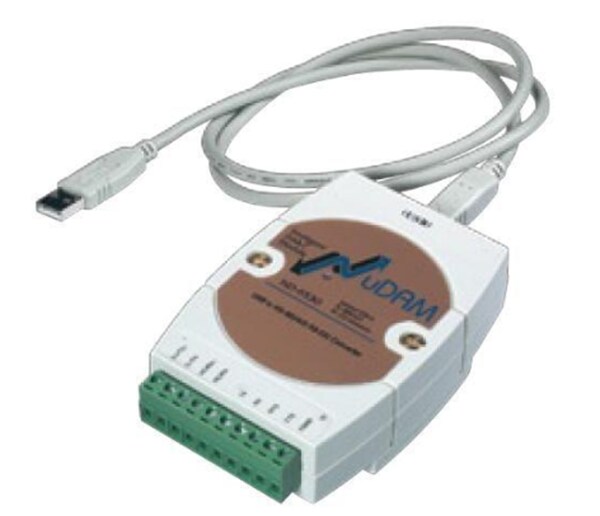

ADLINK Technology NuDAM ND-6530 Converter
ADLINK NuDAM ND-6530 Converter is a USB to RS-422/RS-485 converter with DIP switch selectable protocol. This device offers 2500VRMS isolation voltage and 0.795W typical power consumption. ADLINK NuDAM ND-6530 Converter is USB 1.1 and RoHS compliant and has an operating temperature range of -10°C to +70°C.
Features
- Protocol (DIP switch selectable)
- -RS-232 (5-wire: RXD, TXD, RTS, CTS, GND)
- -RS-422 (4-wire: TX+, TX-, RX+, RX-)
- -RS-485 (2-wire: Data+, Data-)
- 1200kbps to 115.2kbps speeds
- 0.795W typical power consumption
- 2500VRMS isolation voltage
- USB 1.1 and RoHS compliant
