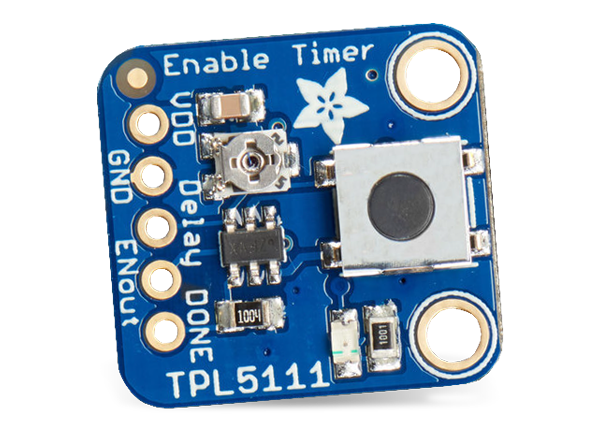

Adafruit TPL5111 Low-Power Timer Breakout Board
Adafruit TPL5111 Low-Power Timer Breakout Board is a stand-alone breakout capable of turning any electronics into low-power electronics. This Breakout Board comes fully assembled with a Texas Instruments TPL5111 chip and all components on board in a small form factor. Adafruit TPL5111 Breakout Board enables and disables the electronics, using a built-in timer that varies from once every 100ms up to once every 2 hours. This device can be activated by pressing the onboard tactile switch or the custom-made switch-to-delay pin.
Features
- Evaluates the TPL5111 ultra-low power system timer chip
- Draws only 20µA current (as per Monsoon power meter)
- Enable pin is set to high periodically (adjustable by potentiometer or resistor)
- Active LED to indicate ENout pin is powered
- Compact 19.5mm x 17.8mm x 5mm form factor
- 3VDC to 5VDC operating supply voltage
- 1.4g product weight
Applications
- Internet of Things (IoT)
- Intruder detection
- Tamper detection
- Home automation sensors
- Thermostats
- Consumer electronics
Videos
Related Products
Texas Instruments TPL5111 System-Timer mit extrem geringem Stromverbrauch
Mit einem Stromverbrauch von nur 35nA ideal für das Power-Gating in Tastverhältnis- oder batteriebetriebenen Anwendungen geeignet.
Bioard Layout
Veröffentlichungsdatum: 2018-01-08
| Aktualisiert: 2022-08-02
