Adafruit TPL5110 Power Timer Breakout Board

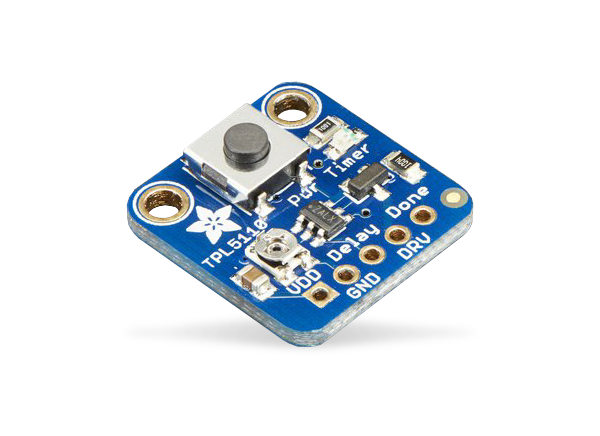

Adafruit TPL5110 Power Timer Breakout Board is a fully assembled board with a TPL5110 power timer. This board is a stand-alone breakout to turn any electronic device into a low-power device. The TPL timer will periodically turn on/off projects power by adjusting the potentiometer or resistors. The timer can vary from once every 100ms to once every two hours.

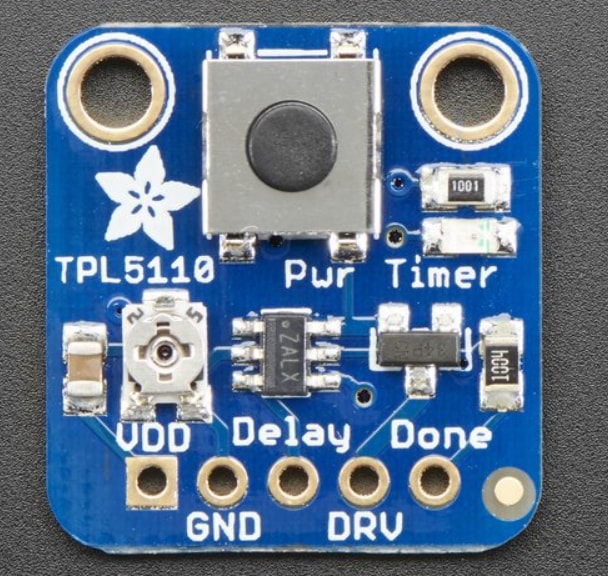

Breakout Board Pin Diagram

Adafruit TPL5110 Power Timer Breakout Board

Pins Description

VDD: Power i/p (3V to 5V) for both TPL1150 chip and device to be controlled
GND: Shared ground for power and signal
Delay: Delay control pin by adjusting the resistance
DRV: Drive output pin, the TLP5110 will power this pin with the same voltage as from VDD when the timer activates
Done: Signal pin from the driven electronics back to the TPL5110 to turn it off
