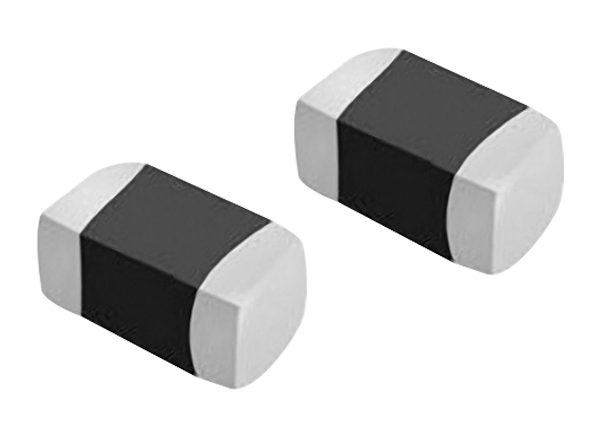

Abracon ASMPH-0806 SMD Multilayer Chip Power Inductors

Abracon ASMPH-0806 SMD Multilayer Chip Power Inductors offer a 0.47µH to 4.7µH inductance range, up to 1500mA current rating, and -40°C to +85°C temperature range. These inductors feature a low profile, monolithic structure for high reliability, excellent solderability and heat resistance, and a magnetically shielded structure to eliminate cross-coupling. Abracon ASMPH-0806 SMD Multilayer Chip Power Inductors are constructed with low loss ferrite material that supports high-speed switching frequencies.


  • Low profile
  • Monolithic structure
  • Excellent solderability
  • Heat resistant
  • Magnetically shielded structure


  • Switching Mode Regulators
    • Smartphones
    • Cameras
  • Buck Converters
    • RFIC
    • RFPA
    • Audio codec modules
  • Boost Converters
    • Flash drivers
  • Wireless cards
  • DVD players
  • Electronic devices


  • 0.47µH to 4.7µH inductance range
  • 1100mA to 1500mA temperature rise current
  • 220mA 1600mA saturation current
  • -40°C to +85°C operating temperature range
