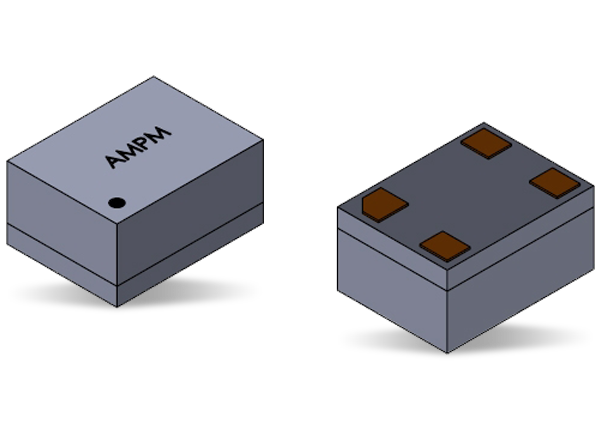

Abracon AMPM Power Optimized MEMS Oscillators

Abracon AMPM Power Optimized MEMS Oscillators offer a 1MHz to 80MHz output frequency range and 12µA power standby in a compact design with an output enable function. The AMPM MEMS oscillators consume low power during operation, come in a low 0.84mm profile package, and operate in a -40°C to +85°C temperature range. Applications include the Internet of Things (IoT), audio, video, drone, and robotics.


  • Compact footprint and low 0.84mm profile package
  • Low power consumption
  • Low operating current
  • Output enable or ultra-low power standby
  • Moisture Sensitivity Level (MSL) 1
  • Lead-free and RoHS/RoHS II compliant


  • Wearables
  • Internet of Things (IoT)
  • Industrial IoT
  • Audio and video
  • Drones
  • Robotics


  • 1MHz to 80MHZ output frequency range
  • 1.71V to 3.63V power supply voltage range
  • 1.3mA typical current consumption
  • ±25ppm or ±50ppm all-inclusive frequency stability
  • ±5ppm first year aging, ±1ppm per year after the first
  • 300kΩ typical enable pull-up resistor
  • 0.1ms to 100ms power supply ramp range
  • 1.5ms maximum start-up time
  • 1µs maximum output enable time
  • 1.2ns to 3.5ns maximum rise/fall time range
  • 28ps to 40ps maximum RMS period jitter
  • 150ps to 240ps maximum cycle-to-cycle jitter (peak)
  • Temperature ranges
    • -40°C to 85°C operating
    • -55°C to +150°C storage
    • +260°C typical soldering
