Abracon ABM14N Crystals

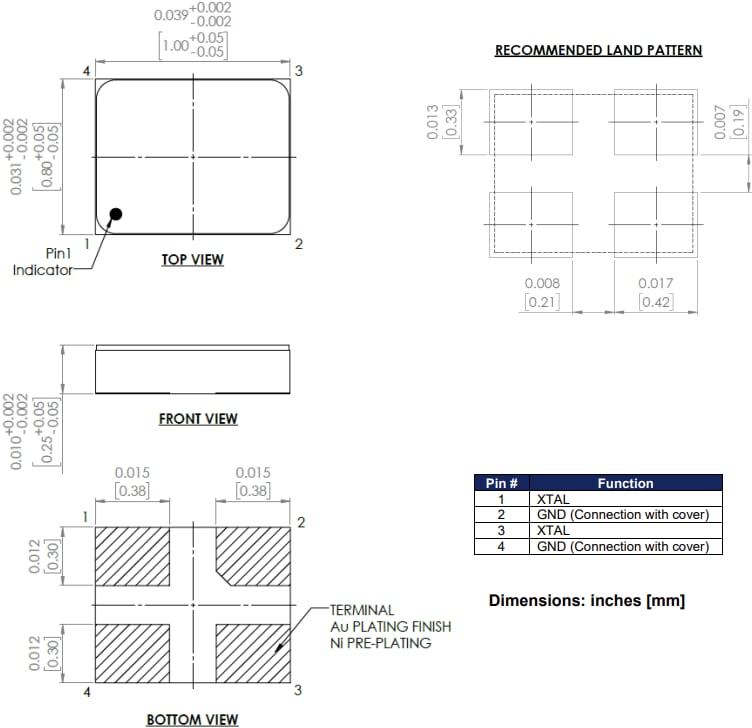

Abracon ABM14N Crystals are ultra-miniature AT-Cut MHz quartz crystals that offer industry-standard frequencies of 40MHz, 48MHz, 52MHz, 59.97MHz, 60MHz, 76.8MHz, and 80MHz. These crystals are offered in a 1mm x 0.8mm x 0.25mm four-pad SMD package. The ABM14N crystals feature a tight frequency accuracy and stability of ±10ppm over an operating temperature range of -30°C to 85°C. These crystals offer a low plating load (CL) of 8pF, and low Equivalent Series Resistance (ESR) can be achieved in the ultra-compact and thin package size. The ABM14N crystals are used in wearables, wireless modules, Internet of Things (IoT), Bluetooth/Bluetooth Low Energy (BLE), and ultra-low power MCUs/SoCs/Transceivers end applications.
