ABLIC S-1213/4 LDO Regulators

ABLIC S-1213/4 LDO Regulators are positive voltage regulators with a high-withstand voltage, low current consumption, and high-accuracy output voltage. These regulators come with a built-in low on-resistance output transistor that provides a very small dropout voltage and a large output current. The S-1213/4 regulators feature a built-in overcurrent protection circuit to limit the overcurrent of the output transistor and a built-in thermal shutdown circuit to limit heat. These regulators come in a TO-252-5S(A)/HSOP-8A package that is compatible with the industry-standard TO-252-5 package. Typical applications include constant voltage power supplies for industrial equipment and home electric appliances.


  • Ensure stable operation in harsh temperature environments up to 105°C
  • Handle the high current of equipment
  • Top-class load transient response characteristics
  • Housed in high-power dissipation package
  • Built-in low on-resistance output transistor
  • Built-in overcurrent protection circuit
  • Built-in thermal shutdown circuit


  • Output voltages (internally set):
    • 1.8V, 3V, 3.3V, 5V, 8V, 12V, and 15V
  • Output voltage range (externally set):
    • 1.8V to 30V
  • 2.8V to 36V input voltage range
  • ±1% output voltage accuracy at Ta=25°C
  • Output current:
    • 500mA (S-1213)
    • 1A (S-1214)
  • Current consumption:
    • During operation : 5μA (typ) at Ta=25°C
    • During power-off : 0.1μA (typ) at Ta=25°C

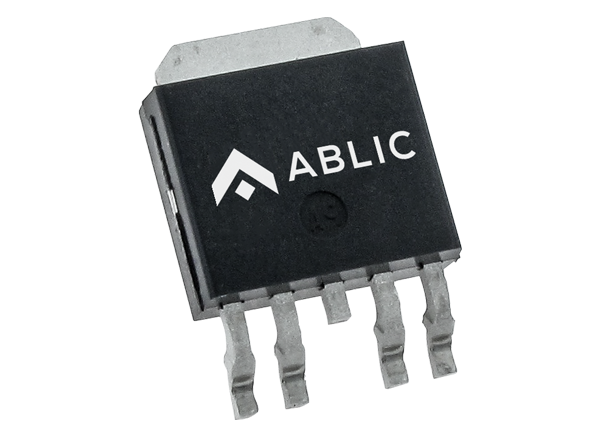

  • TO-252-5S(A) and HSOP-8A packages
  • -40°C to 105°C operating temperature range


  • Household appliances:
    • Fire alarm
    • Microwave
    • Air cleaner
    • Air conditioner
    • Set-top box
  • Industrial:
    • FA robot
    • Programmable Logic Controller (PLC)
    • AC servo
    • DC brushless fan
    • Stepping motor driver
    • Safety light curtain


ABLIC S-1213/4 LDO Regulators

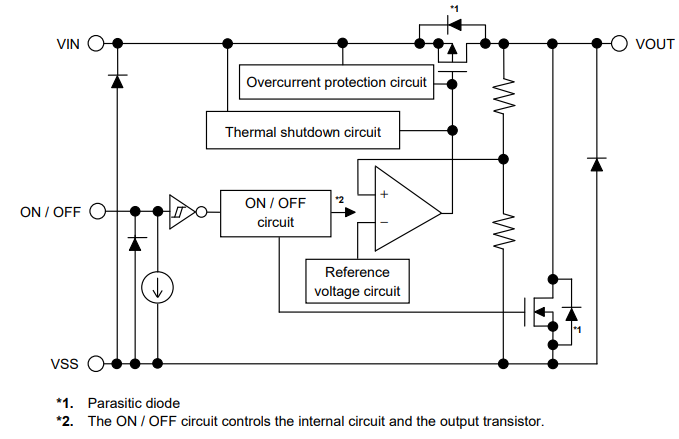

Block Diagram (Internally Set Output Voltage)

Block Diagram - ABLIC S-1213/4 LDO Regulators

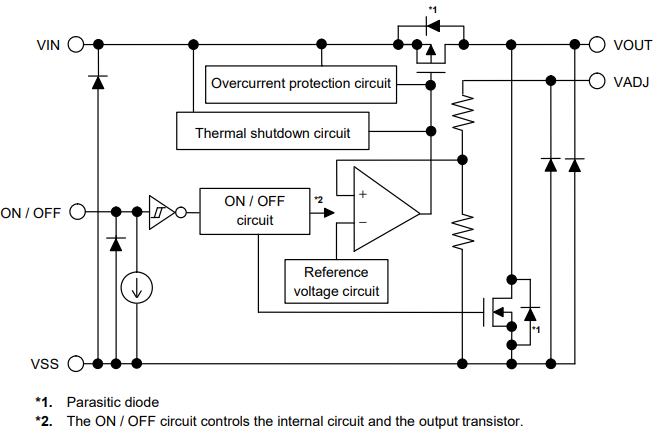

Block Diagram (Externally Set Output Voltage)

Block Diagram - ABLIC S-1213/4 LDO Regulators
