3M HF759 Round, Jacketed Flat Cables
3M HF759 Round, Jacketed Flat Cables offer a 136Ω balanced impedance rating, a 60% propagation velocity, and a 150V voltage rating. The HF759 series features a round construction that permits easier routing and a zippable primary cable for branching or discrete termination. The continuous split/bond repeat allows for mass terminations of IDC connectors.
Features
- Round construction permits easier routing
- 28AWG wire on 0.05" center permits mass termination to broad line of IDC connectors
- Continuous split/bond repeat allows for mass terminations of IDC connectors
- Primary cable is zippable for branching or discrete termination
Specifications
- Voltage rating
- 150V for USA
- 150V for Canada
- <50V for EU
- Characteristic impedance
- 75Ω unbalanced
- 136Ω balanced
- Capacitance
- 22.6pF/ft (74.3pF/m) unbalanced
- 12.4pF/ft (40.6pF/m) balanced
- Inductance
- 0.13μH/ft (0.43μH/m) unbalanced
- 0.23µH/ft (0.75μH/m) balanced
- 1.69ns/ft (5.54ns/m) propagation delay
- 60% propagation velocity
- Insulation resistance: (Primary Cable) >1× 1010Ω/10ft. (3m)

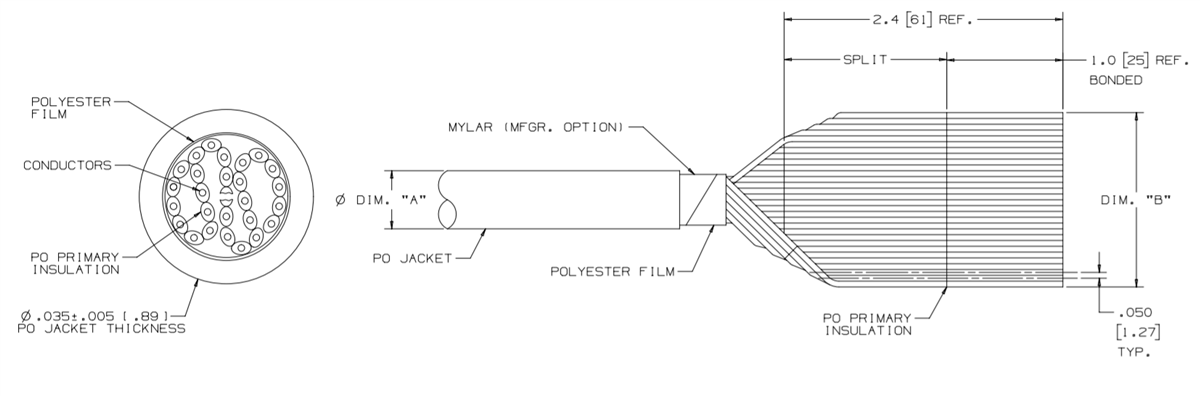

Cable Drawing
Related Cables

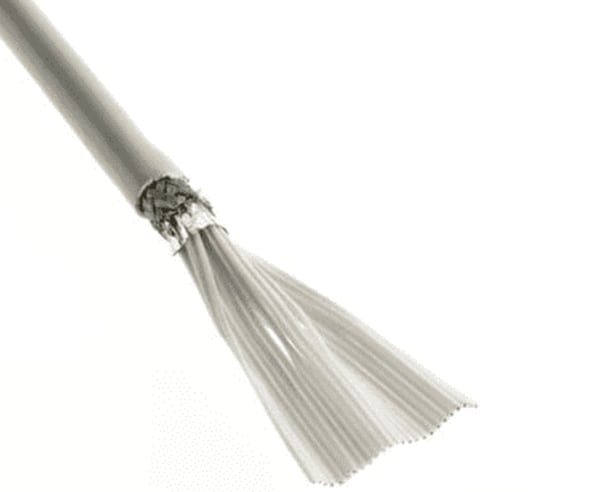

3M Halogenfreie Rundleiter-Flachkabel
